The updated Troxus Lynx Plus fat tire electric bike is a highly maneuverable mini cargo hauler ready to roam and explore. It is UL-2849 certified for safety.
The updated Troxus Lynx Plus fat tire electric bike is a highly maneuverable mini cargo hauler ready to roam and explore. It is UL-2849 certified for safety.
Troxus

Troxus Lynx Plus E-Bike 20 inch in Chalk

$1,999.00 $2,399.00 17% off
Earn
in Customer Rewards when you buy this item today
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Troxus Lynx Plus E-Bike 20 inch in Chalk

Season:2025

Brand:Troxus

Code:10870100320

The updated Troxus Lynx Plus fat tire electric bike is a highly maneuverable mini cargo hauler ready to roam and explore.

Highly maneuverable and nimble, the Lynx Plus is perfect for city dwellers, but with 51cm (20") fat tires, it can escape the urban jungle to explore nature too. With its redesigned semi-integrated rear rack, featuring MIK compatibility, it can carry up to 45kg (100 lbs.) on the rear rack and 181kg (400 lbs.) total payload capacity, making the Lynx Plus ultra-capable. This bike is UL-2849 certified for safety and reliability, featuring a 960 Wh long-range battery capacity for all-day fun.

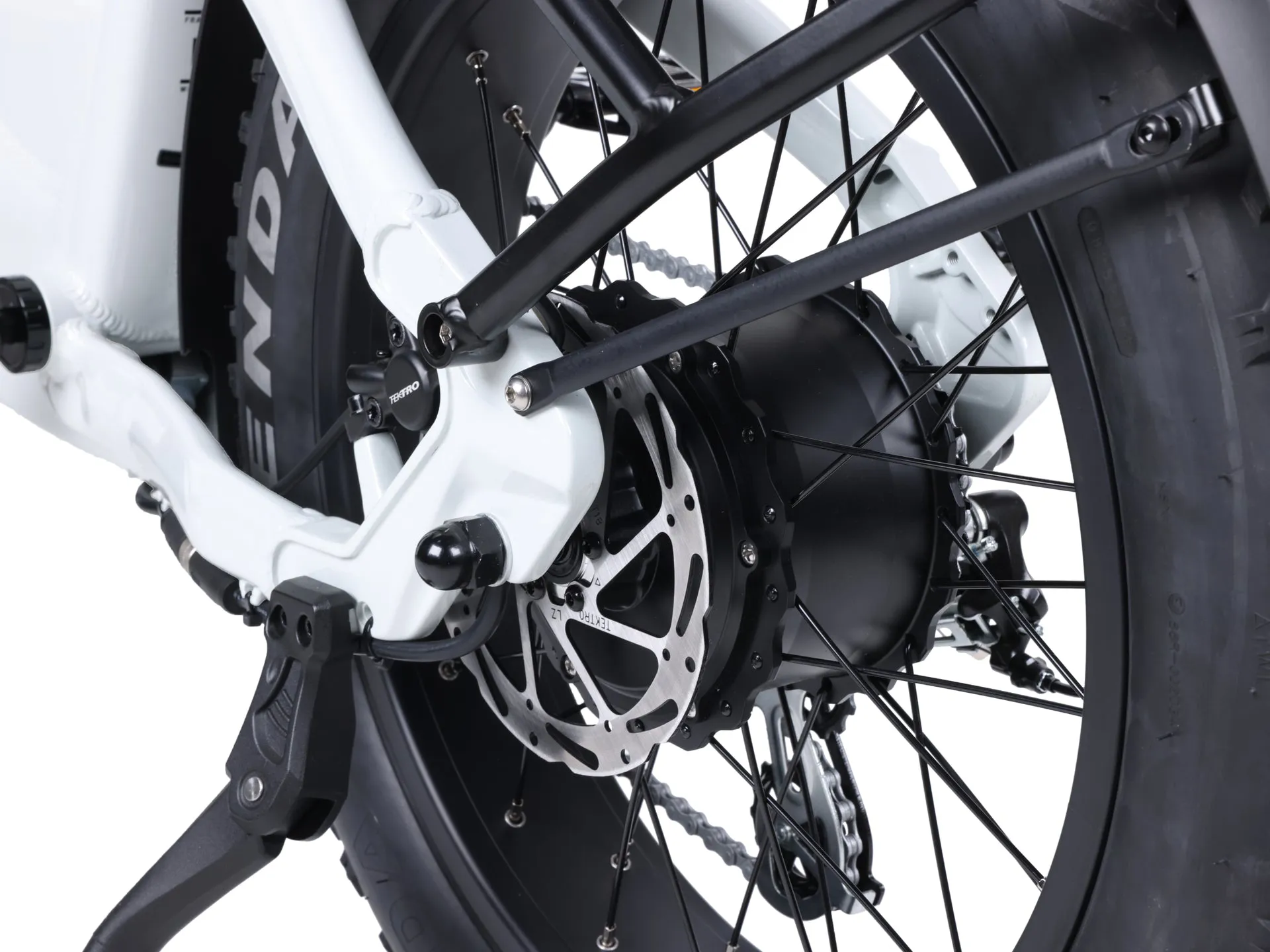

The Bafang 750 Watt (sustained) hub-drive motor provides exceptional 86Nm torque to get up the steepest hills. The long-range battery uses Samsung cells for all-day adventures and a range of up to 145 km (90 miles) on a single charge.

Features:

  • Max Speed: Up to 45 km/h (28 MPH)
  • Range: Up to 145 km (90 miles) per charge
  • Motor: 750W Bafang Hub Motor (86Nm torque)
  • Battery: 48V 20Ah (960Wh) with Samsung Cells
  • Payload Capacity: 181kg (400 lbs.)
  • Sensor: Switchable Torque and Cadence Sensor Modes
  • Shifting: Shimano 8-Speed Shifting

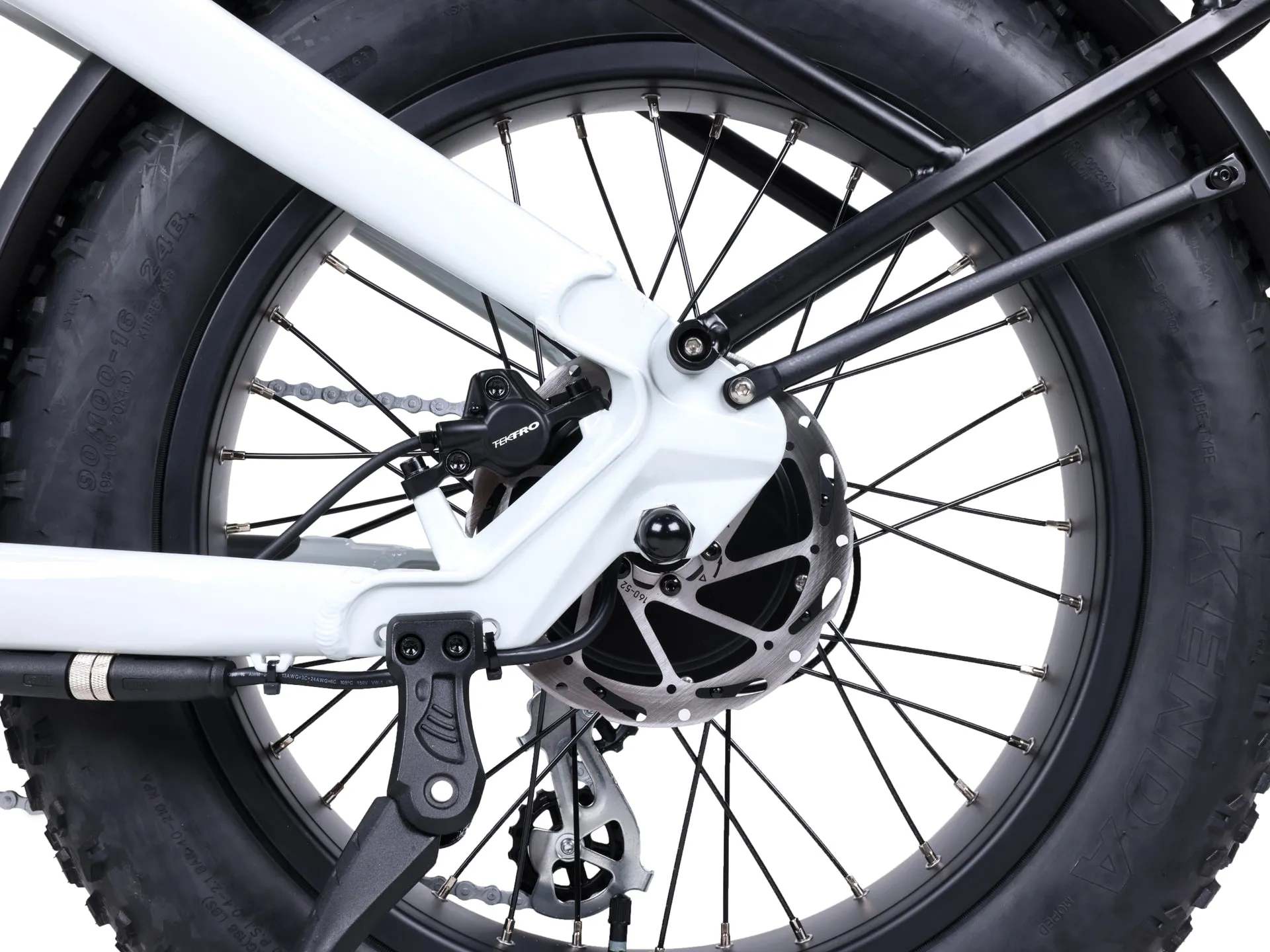

  • Brakes: Tektro Hydraulic Disc Brakes for excellent stopping power
  • Tires: Kenda Krusade 51cm x 10cm (20" x 4") puncture-resistant tires
  • Frame: 6061 Aluminum Step-Thru Frame
  • Suspension: 80mm of front suspension
  • Lighting: Integrated lighting system with front and rear lights, turn signals, and a bonus daytime four-way flashing setting
Technical Information
  • Motor
    Ananda 48V/750W Hub-Drive Motor, 86Nm Max. Torque
  • Battery
    UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/20Ah (960Wh) with Samsung® Cells
  • Throttle
    Thumb Throttle on Handlebar
  • Sensor
    Switchable Torque And Cadence Sensor Modes
  • Pedal assist
    0~5 Level Pedal Assist
  • Charger
    3A / 100-240V Input / 54.6V Output
  • Lights
    Front Light, Rear Light w/ Turn & Hazard Signals
  • Controller
    48Vx22A/12V
  • Frame
    6061-T6 Aluminum Step-Thru Frame
  • Fork
    Front Suspension Fork, 80mm Travel
  • Chain
    KMC® 1/2"x3/32"
  • Crankset
    Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 165mm
  • Rear derailleur
    Shimano® RD-M310-L, Altus, 8-Speed
  • Cassette
    Shimano® 8-Speed, 12-32T
  • Shifter
    Shimano® 8-Speed
  • Bottom bracket set
    Square Taper Sealed Bearings, Torque & Cadence Sensors Included
  • Tires
    KENDA® 20"x4.0", w/ Anti-Puncture K-Shield
  • Front hub
    Alloy, 36H, 110mm, 3/8" Axle
  • Rear hub
    Bafang® 48V 750W/ 28 MPH. 86Nm
  • Rims
    Alloy Double Wall, 20"x4.0" w/ Eyelets
  • Spokes
    Stainless 13G. Front / 12G. Rear
  • Brakes
    Tektro® Hydraulic, w/ Brake Sensors
  • Rotors
    180mm / 160mm

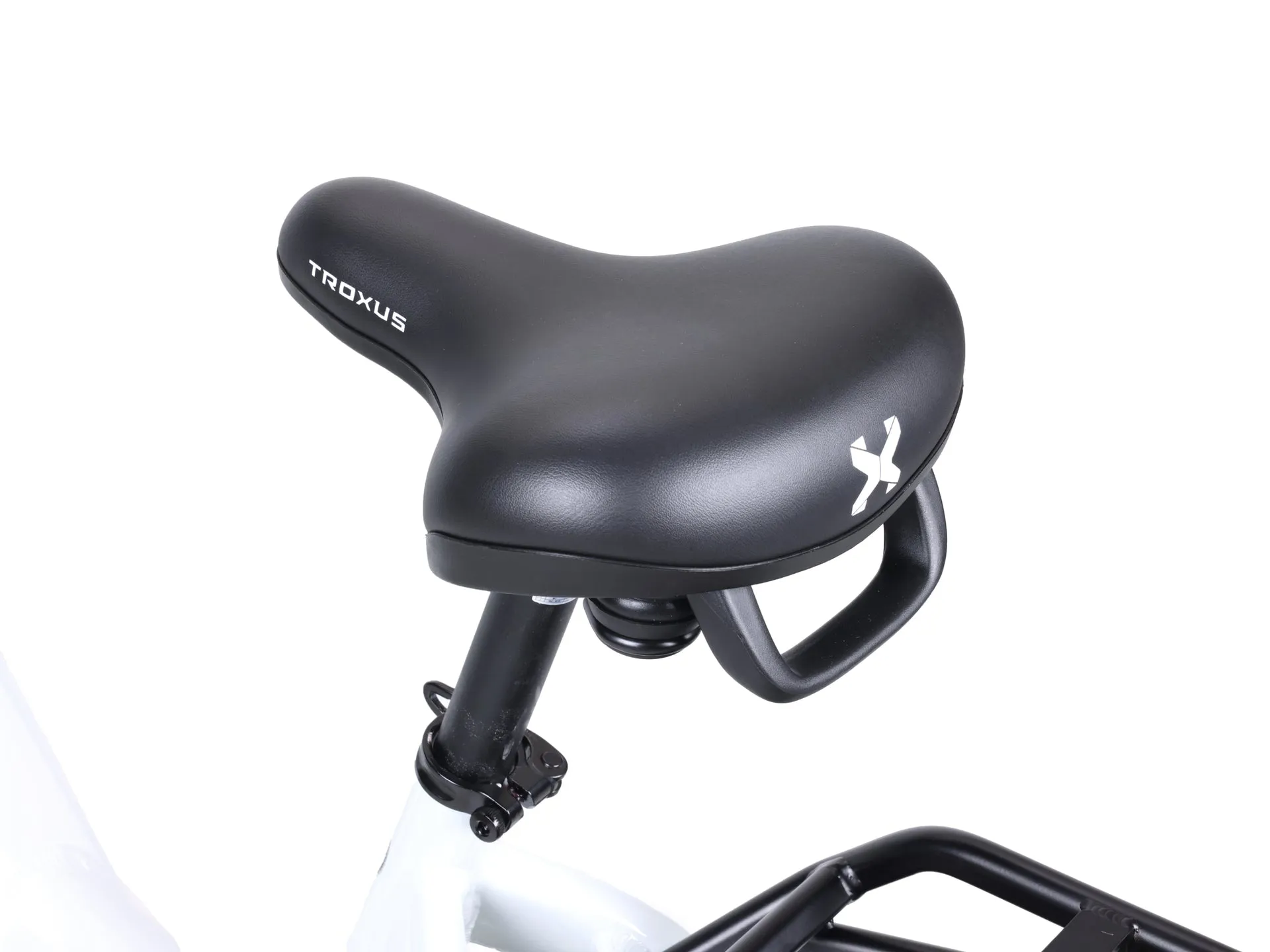

  • Saddle
    Troxus Comfort w/ Back Handle
  • Seat post
    Alloy, 30.9x400mm, Adjustable
  • Seat-post clamp
    Alloy, 35mm w/ Quick Release
  • Stem
    Alloy, BMX style, Top-Load, 30 Deg. Angle, 50mm Extension
  • Handlebar
    Alloy 6061-T6, 31.8mmx 680mm Wide, 261mm Rise
  • Grips
    Ergonomic Comfort
  • Pedals
    9/16″ Alloy Platform with Reflectors
  • Headset
    Threadless, Locking Internal 1-1/8"
  • Max speed
    Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist
  • Range
    Up To 90 Miles Per Charge
  • Weight limit
    Maximum Load: 400 lbs; Maximum Rear Rack Capacity: 100 lbs
  • Net weight
    77.2 lbs

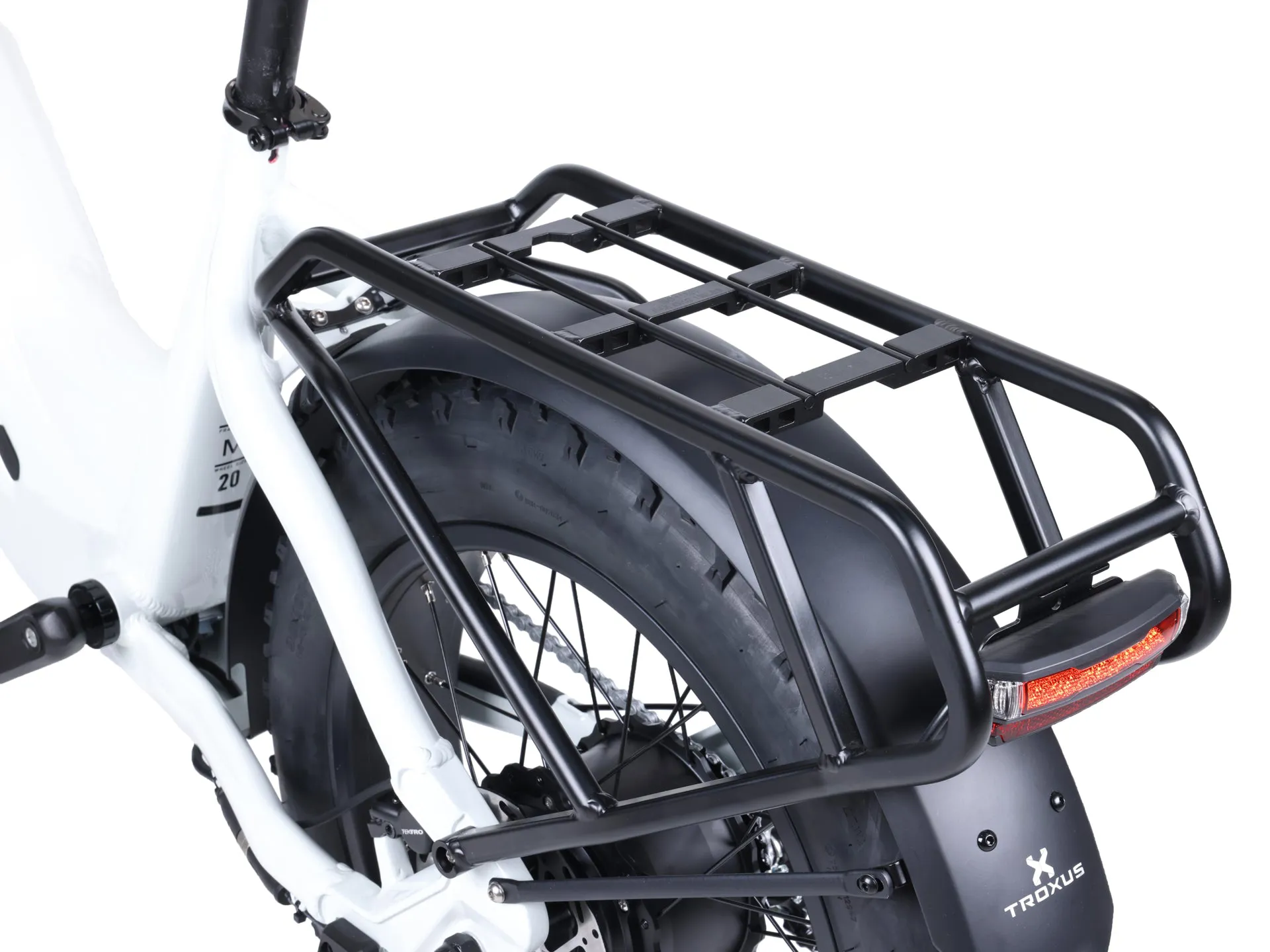

  • Rack
    Semi-Integrated Alloy Rear Model/ MIK-Compatible Rear Rack
  • Fenders
    Alloy, 20"x4.0" w/ Alloy Hardware
  • Kickstand
    Adjustable Side Kickstand
  • Packaged
    Above All Accessories Are Included.
  • Frame size
    Universal
  • Wheel size
    20"x4.0"
  • A - Seat tube length
    375
  • B - Seat tube angle
    71˚
  • C - Head tube length
    145
  • D - Head tube angle
    68˚
  • E - Effective top tube length
    645
  • F - Bottom bracket height
    285
  • G - Bottom bracket drop
    10
  • H - Chainstay length
    425
  • I - Fork offset
    46
  • J - Wheelbase
    1148
  • K - Frame reach
    460
  • L - Frame stack
    538
  • Fork travel
    80
  • Fork height
    440
Sizing Information

Recommend Height

Size: One Size Fits Most
