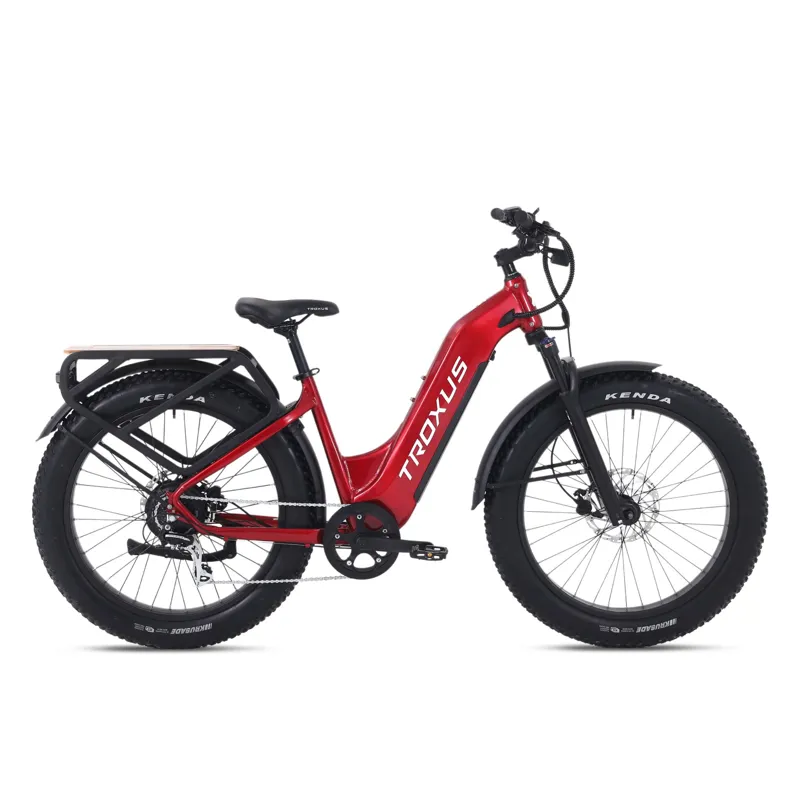

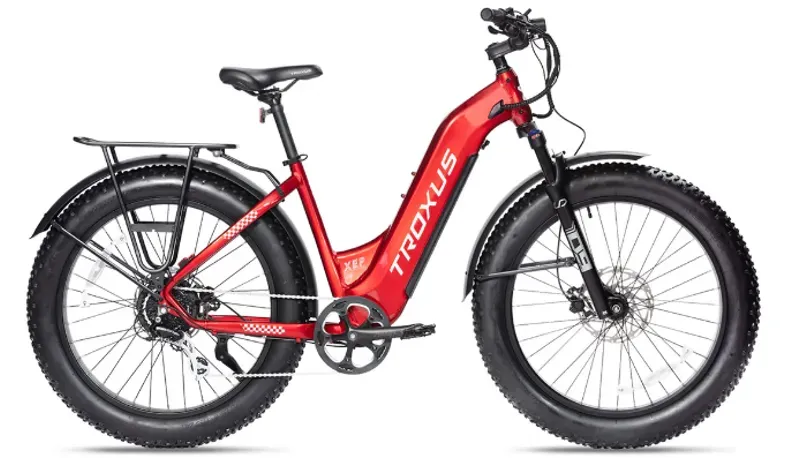

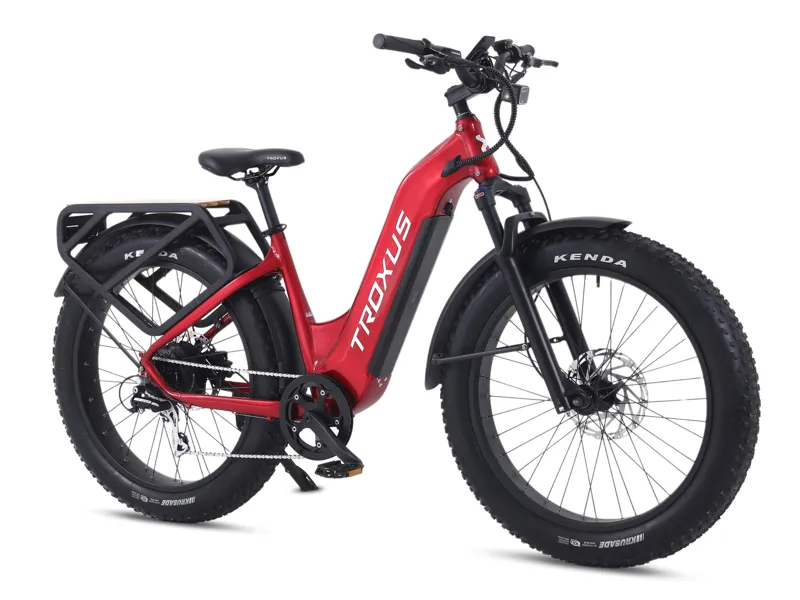

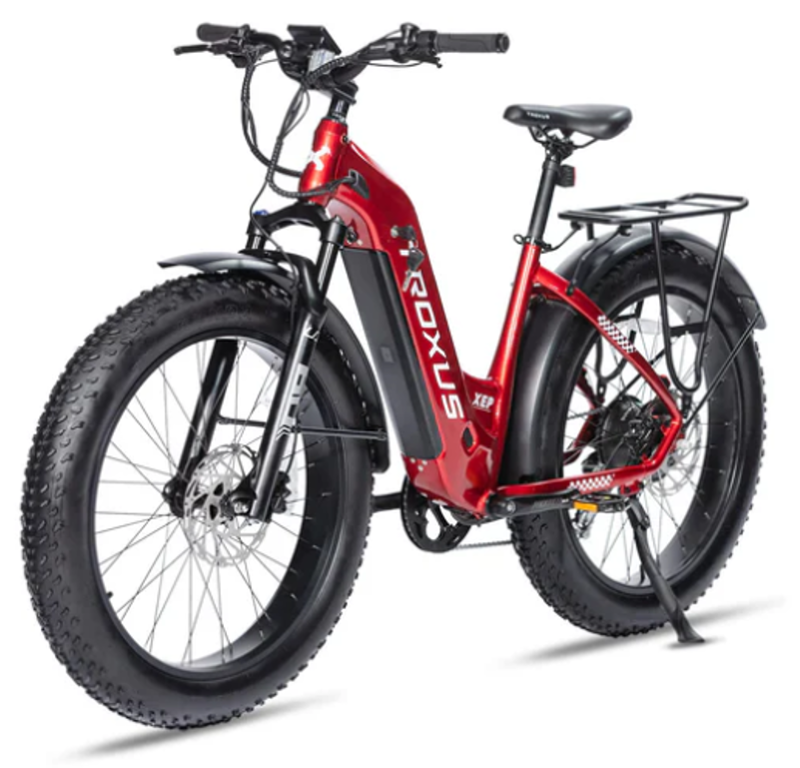

Troxus Explorer Plus Fat Tire Step-Thru E-Bike in Red

Season:2024

Brand:Troxus

Code:108701002red

The Troxus Explorer series e-bikes are equipped with durable fat tires and a sturdy aluminum alloy frame, providing stability and traction over rough terrain like snow, sand, and mud.

The 48V 20Ah high-power Samsung battery ensures enough power to ride and explore further. Wide 66cm x 10cm (26"x4.0") Kenda fat tires provide exceptional power transfer and stability for hunting, fishing, or wherever the road or trail takes you. The Bafang 750 Watt (sustained) hub-drive motor offers exceptional 86Nm torque, reaching cruising speeds of up to 45 km/h (28 MPH) with quiet efficiency. The long-range 960 Wh 20 Ah battery, featuring Samsung cells, provides a range of up to 145 km (90 miles) on a single charge for all-day adventures.

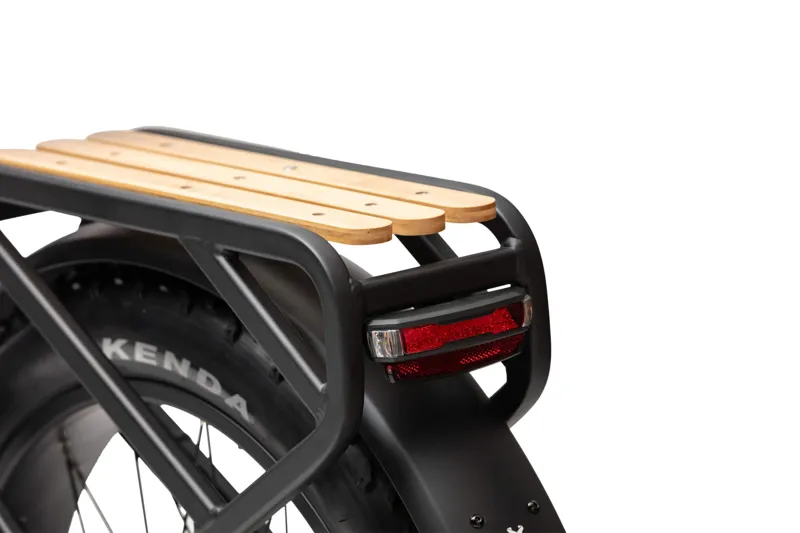

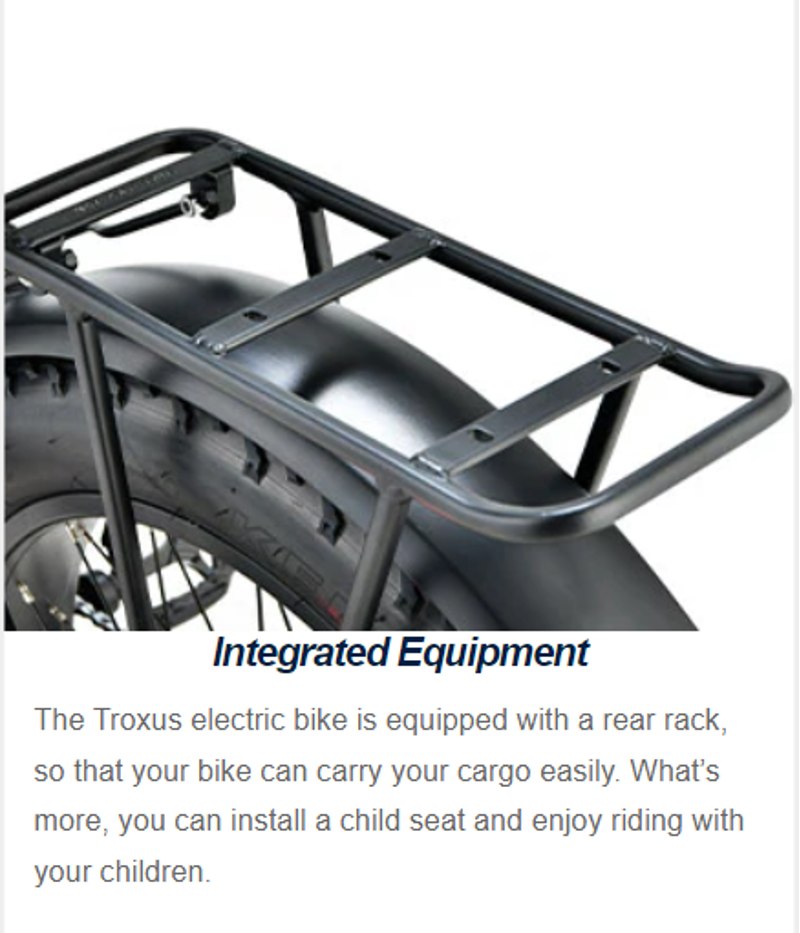

The heavy-duty semi-integrated rear rack keeps all loads secure, providing an ultra-stable ride. This rack, which includes an integrated taillight and turn signals, is capable of carrying up to 45kg (100 pounds) of cargo or passengers. The Ultra-Durable 6061 Aluminum Frame is built for rugged use and is available in a step-thru version to accommodate riders of all sizes.

Features:

  • Bafang 750W Hub Motor (Max Speed up to 45 km/h (28 MPH))
  • 48V 20Ah (960Wh) Battery with Samsung Cells (Range up to 145 km (90 Miles))
  • Switchable Torque and Cadence Sensor Modes
  • Shimano 8-Speed Shifting
  • Tektro Hydraulic Disc Brakes

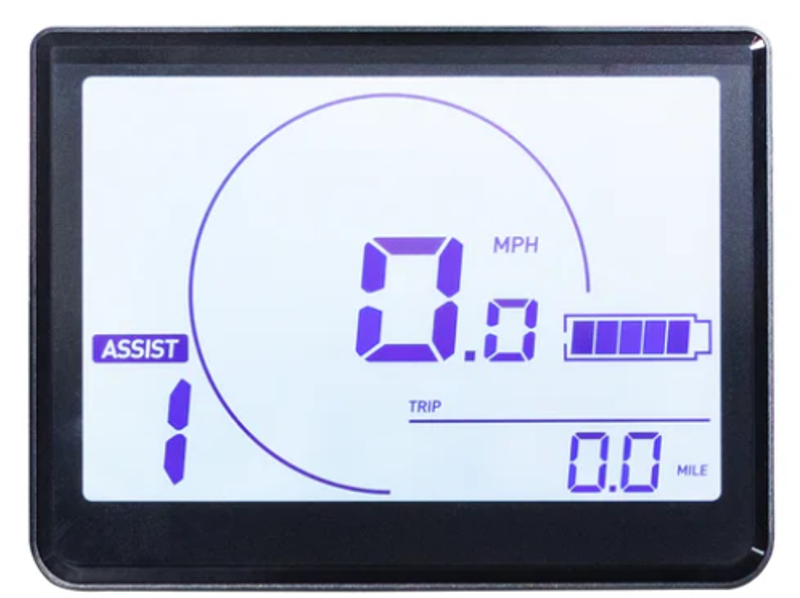

  • Bluetooth color display with integrated lights and turn signals

Customer Reviews - 4.94 out of 5 - Based on 116 reviews

REAL WORLD TESTING ON THROTTLE

SPEED:Up to 20MPH

RANGE:36 Miles Without Pedaling

ON PEDAL ASSIST
PAS LEVEL 1 SPEED: 10MPH RANGE: 65Miles
PAS LEVEL 2 SPEED: 15MPH RANGE: 60Miles
PAS LEVEL 3 SPEED: 20MPH RANGE: 38Miles
PAS LEVEL 4 SPEED: 23MPH RANGE: 36Miles
PAS LEVEL 5 SPEED: 28MPH RANGE: 34Miles
Speed & Range testing was calculated using a rider weight of 180lbs on 80% flat terrain
Technical Information
  • Motor
    Bafang® 48V/750W Hub-Drive Motor, 86Nm Max. Torque
  • Battery
    UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/20Ah (960Wh) with Samsung® Cells

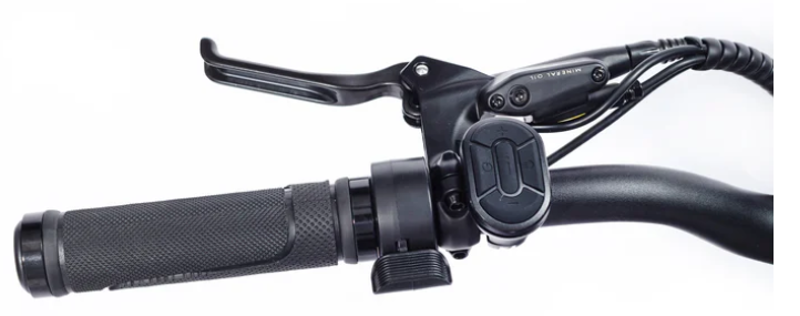

  • Throttle
    Thumb Throttle on Handlebar
  • Sensor
    Switchable Torque And Cadence Sensor Modes
  • Pedal assist
    0~5 Level Pedal Assist
  • Charger
    3A / 100-240V Input / 54.6V Output
  • Lights
    80 Lux Front Light, Rear Light w/ Turn & Hazard Signals
  • Controller
    48Vx22A/6V
  • Frame
    6061-T6 Aluminum Step-Thru Frame
  • Fork
    Front Suspension Fork, 90mm Travel
  • Chain
    KMC® 1/2"x3/32"
  • Crankset
    Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 170mm
  • Rear derailleur
    Shimano® RD-M310-L, Altus, 8-Speed
  • Cassette
    Shimano® 8-Speed, 12-32T
  • Shifter
    Shimano® 8-Speed
  • Bottom bracket set
    Square Taper Sealed Bearings, Torque & Cadence Sensors Included
  • Tires
    KENDA® 26"x4.0", w/ Anti-Puncture K-Shield
  • Front hub
    Alloy, 36H, 135mm, 3/8" Axle
  • Rear hub
    Bafang® 48V 750W/ 28 MPH. 86Nm
  • Rims
    Alloy Single Wall Front / Double Wall Rear, 36H, 26"x4.0", w/ Eyelets
  • Spokes
    Stainless 13G. Front / 12G. Rear
  • Brakes
    Tektro® Hydraulic, w/ Brake Sensors
  • Rotors
    203mm / 203mm
  • Saddle
    Troxus Comfort
  • Seat post
    Zoom® Alloy, 30.9x350mm, Adjustable
  • Seat-post clamp
    Alloy, 35mm w/ Quick Release
  • Stem
    Zoom® Alloy, Threadless, 1-1/8", Ext. 75mm, 28.6mm, 7-Degree Rise

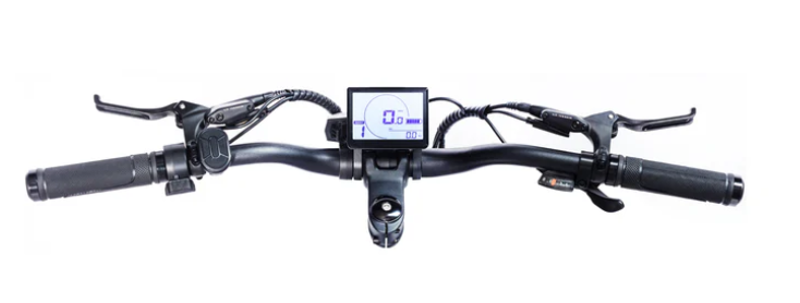

  • Handlebar
    Zoom® Alloy 31.8mmx700mm Wide
  • Grips
    Ergonomic Comfort
  • Pedals
    9/16″ Alloy Platform
  • Headset
    Threadless, Locking Internal 1-1/8"
  • Max speed
    Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist
  • Range
    Up To 90 Miles Per Charge
  • Weight limit
    Maximum Load: 400 lbs; Maximum Rear Rack Capacity: 100 lbs
  • Net weight
    83.8 lbs
  • Rack
    Semi-Integrated Alloy Rear Model
  • Fenders
    Alloy, 27.5"x4.0", Full coverage
  • Kickstand
    Adjustable Side Kickstand
  • Packaged
    Above All Accessories Are Included.
Sizing Information

Recommend Height

Size Recommend Height
S 5'0\" - 5'5\"
M 5'5\" - 5'10\"
Professional Opinion

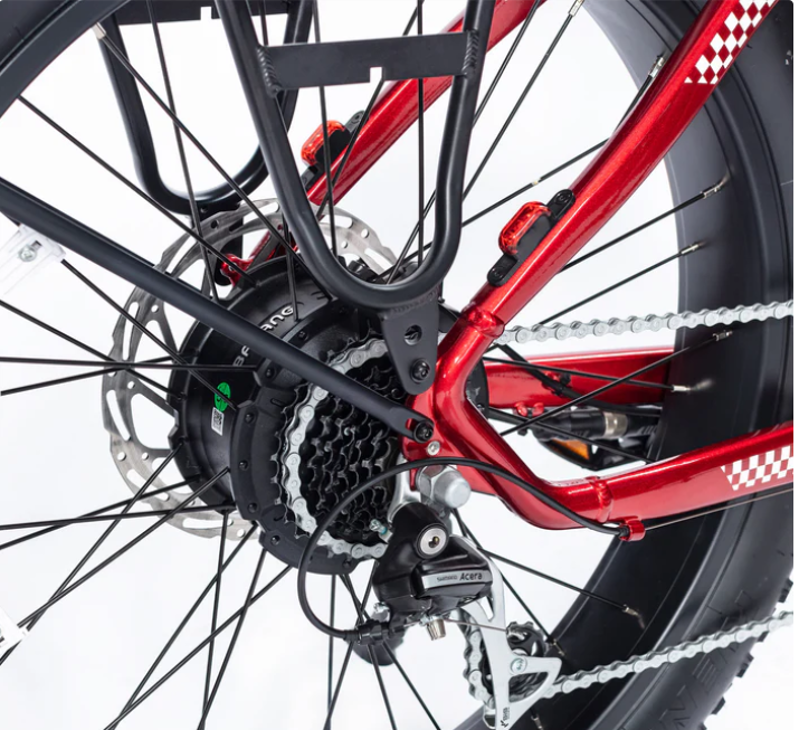

Powerful Bafang 750W Motor
Troxus Explorer series fat tire E-bikes are equipped with the globally recognized BAFANG hub motor. This powerful 750W brushless motor efficiently delivers speeds up to 28MPH with pedal assist. You can enjoy your explorations with increased stability and smoothness throughout the rear hub’s power range.750W Bafang Motortroxus

48V 20A Lithium-ion Battery withSAMSUNG Cells
The Troxus Explorer series supports your long-distance needs with a high capacity battery. SAMSUNG lithium battery cells provide 60+ miles of range per charge, allowing you to discover more and ride further. These batteries are rigorously tested and are waterproof, so that they can reliably perform in any kind of weather- rain or shine.
Safety Tests Performed: Thermal Test - Impact Test - Overcharge Test -Forced Discharge Test - Shock Test -Vibration Test
Affiliates
26" x 4.0" Kenda All-Terrain Fat Tiresreach compliant
Troxus Explorer uses specifically designed e-bike fat tires made of extra-elastic rubber with lower pressure for great shock and vibration absorbency. They also provide excellent grip and easily shed mud, dirt, and sand. No matter whether you are riding in the Rocky Mountains or through the soft leafy litter of Yellowstone Park, or in which weather, you can ride without hesitation.
26*4.0 Kenda All-Terrain Fat Tires
troxus

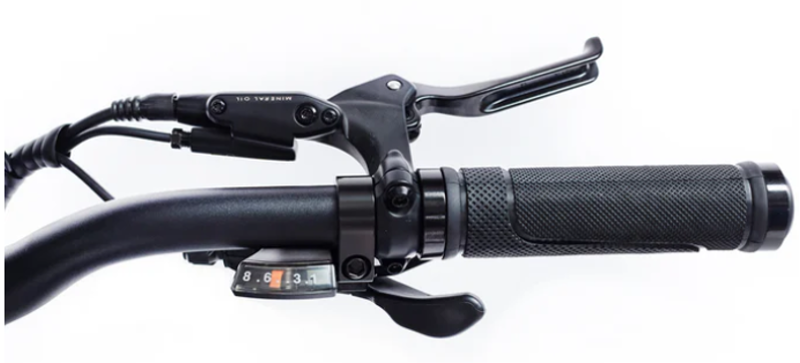

Tektro Hydraulic Disc Brakes
With a dual-diameter opposed piston design, these powerful hydraulic disc brakes have an increased contact area, providing excellent control and confidence in all conditions.
Tektro Hydraulic Disc Brake


REAL WORLD TESTING
ON THROTTLE
SPEED: Up to 20MPH
RANGE: 36 MilesWithout Pedaling

ON PEDAL ASSIST
PAS LEVEL - 1 | SPEED: 10MPH | RANGE: 65Miles
PAS LEVEL - 2 | SPEED: 15MPH | RANGE: 60Miles
PAS LEVEL - 3 | SPEED: 20MPH | RANGE: 38Miles
PAS LEVEL - 4 | SPEED: 23MPH | RANGE: 36Miles
PAS LEVEL - 5 | SPEED: 28MPH | RANGE: 34Miles
Speed & Range testing was calculated using a rider weight of 180lbs on 80% flat terrain
